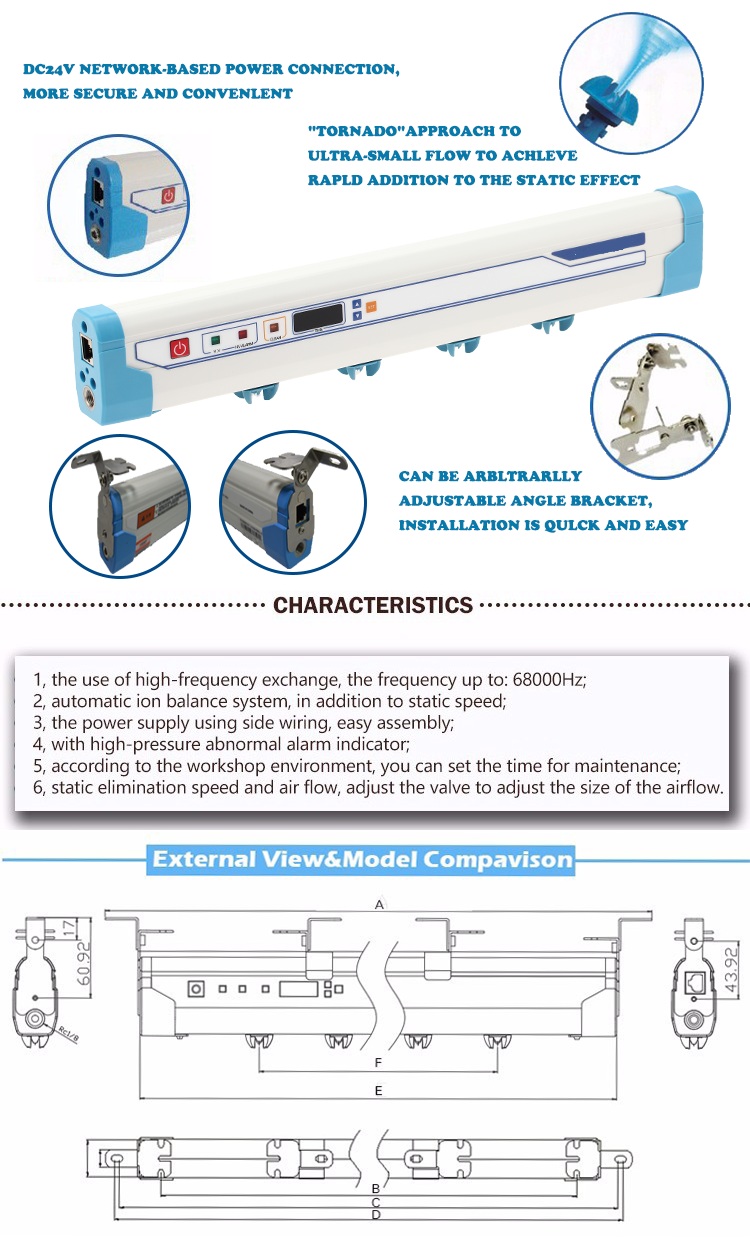

Ionizing Air Bar |
|
| Product name：Ionizing Air Bar |
| Item：ACB-E |
| Details： |
The antistatic bar can produce plenty of positive negative ions,which can neutralize the products'ions that go through the ion radiation area. When the products surface with negative ion, it will attract radiation area's positive ion; when the products surface with positive ion, it will attract radiation area's negative ion, so that static on products surface will be neutralized, and then eliminate static electricity. It is desire eleminating equipment of delicate electronic products, medication line of set-up, printing, packing, and delicate products.It is used in the thousands level clean room.
|
Technical Data
|
|
Input voltage
|
DC24V±5%
|
|
Iron generating way
|
Corona discharge way
|
|
Display LED
|
H.V(green)
|
High voltage normal operation indicator light is on
|
|
ALARM (red)
|
The indicator light is on when discharge is abnormal and electric circuit is abnormal;
|
|
CLEANIKIG (yellow)
|
The indicator is on and the buzzer prompts when reaching the set cleaning time.
|
|
Voltage regulation mode/ applied voltage
|
High frequency AC way/±2200V
|
|
Ion balance
|
Within ±20 V(measuring distance 300mm,supply air pressure 0.3MPa)
|
|
Destaticizing time
|
2.0S(measuring distance 300mm, supply air pressure 0.3MPa)
|
|
Cleaning timer set time
|
Can be set within 0-999 hours
|
|
Ozone generation amount(ppm )
|
Within 0.03pp m(measuring distance 50mm,supply air pressure 0.2MPa )
|
|
Applicable fluid
|
Air(cleaning air of which the water and oil has been removed)
|
|
Air pressure application range(MPa )
|
0.01-0.5MPa
|
|
Use ambient temperature
|
Indoor 0~40℃ CM0T
|
|
Use ambient humidity
|
15~75%Rh (no condensation)
|
 |
 |
